How Do You Diagnose a Fluid Leak Under Your Car?

l

Diagnosing a vehicle fluid leak involves placing a clean sheet of light-colored cardboard under your engine bay overnight, examining the fluid's color, consistency, and odor, and matching its drip pattern to specific mechanical components beneath the chassis. Engine oil appears amber to black with a slippery feel, coolant is bright green or pink with a distinctly sweet aroma, and transmission fluid shows red or maroon. Identifying these characteristics narrows down whether the issue stems from the engine, cooling system, transmission, or braking components.

When you notice wet spots or puddle marks on your driveway, performing a quick visual inspection helps prevent serious mechanical damage. Park your vehicle on a flat, level surface and allow the engine to cool down completely. Slide a clean piece of white cardboard or heavy paper directly beneath the engine and transmission area before leaving it overnight. In the morning, pull the cardboard out and evaluate the fluid using three key indicators: color, texture, and location relative to the front bumper and axles.

Observing where the puddle sits on the cardboard gives immediate clues about its origin. Leaks dripping from the front-center usually point to the radiator, water pump, or oil pan. Fluid pooling near the middle of the vehicle closer to the front seats often traces back to the transmission pan or transfer case. Wetness concentrated near the wheels indicates potential issues with brake calipers, brake lines, or power steering rack boots.

Drivers navigating the rolling hills around Calcutta frequently notice fluid seeps after parking on inclined driveways, which can cause settling fluids to run along underbody splash shields before dropping onto the pavement. If you notice persistent puddles or an unfamiliar fluid mark, you can check our East Liverpool service center address or give our certified technicians a quick call to discuss a professional inspection.

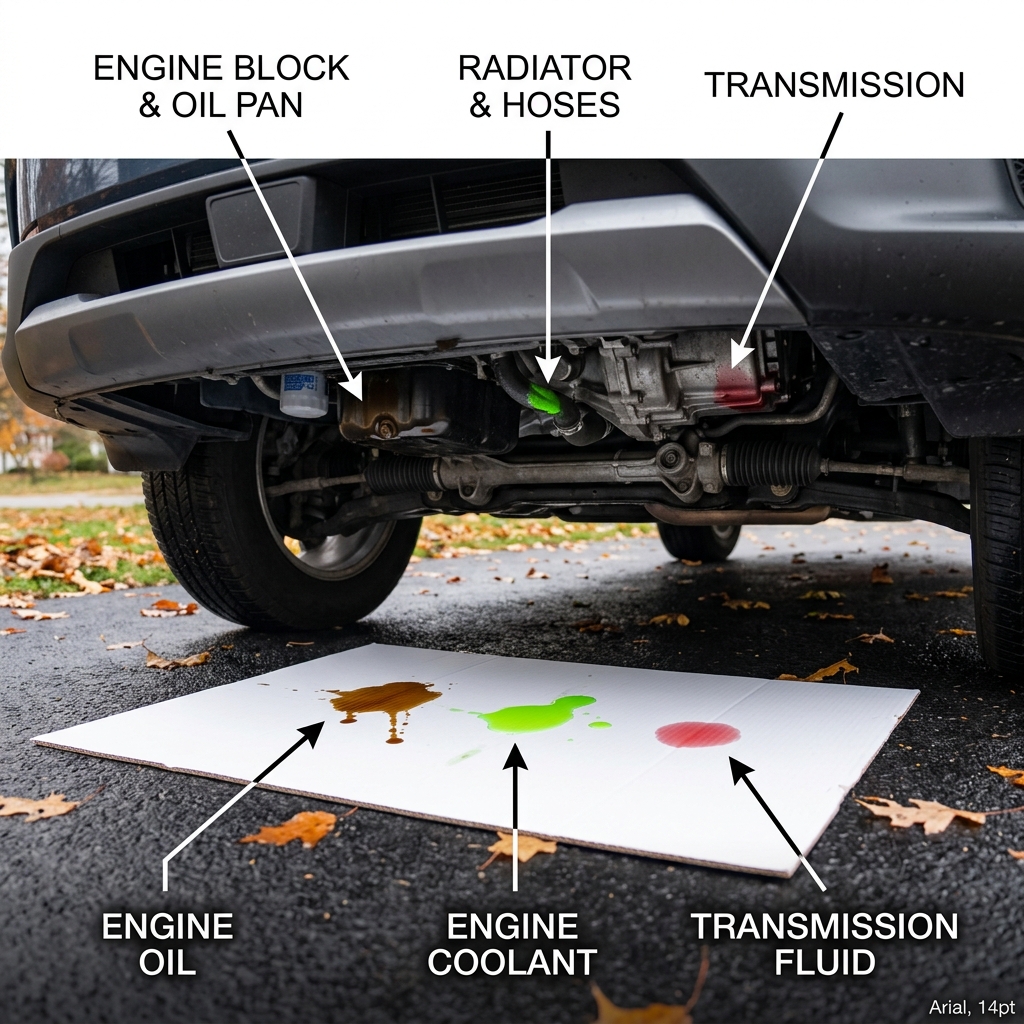

 Diagram showing car undercarriage and cardboard catching brown engine oil, green coolant, and red transmission fluid. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)

Table of Contents

How Do You Identify a Vehicle Fluid Leak by Its Color and Texture?

You identify a vehicle fluid leak by matching its color, viscosity, and scent to the vehicle's essential operating fluids: slick amber or black liquid indicates engine oil, sweet-smelling bright green or orange fluid is coolant, thin red or maroon liquid is transmission fluid, and clear to light yellow slippery fluid near the wheels points to brake fluid.

Every automotive fluid is engineered with specific colors, chemical additives, and weight profiles to perform designated tasks, making visual identification straightforward once you know what to look for:

  • Engine Oil: Fresh engine oil ranges from translucent golden amber to light brown, while used oil turns dark brown or black with a thick, slippery consistency and a heavy petroleum smell. It drops under the front-center of the vehicle near the oil pan or engine block.
  • Engine Coolant (Antifreeze): Coolant features vibrant fluorescent colors including bright green, orange, pink, yellow, blue, or purple. It has a watery, slightly slippery feel and a noticeable sweet, syrupy smell. Coolant pools near the front radiator area or lower hose connections and leaves a chalky white residue when dried on warm metal.
  • Automatic Transmission Fluid: Fresh transmission fluid, such as MERCON LV, appears bright red or pink and has a smooth, oily feel. As it ages, it darkens to maroon or reddish-brown. Leaks drop under the center of the chassis beneath the transmission casing or cooler lines.
  • Brake Fluid: Brake fluid, such as DOT 4 brake fluid, is clear to light yellow or pale amber. It feels slick and thin to the touch but requires immediate clean-up because it can strip exterior vehicle paint. Leaks gather near the wheels, along frame-mounted brake lines, or beneath the brake master cylinder at the firewall.
  • Power Steering Fluid: Power steering fluid usually displays a clear, light amber, or pinkish color with an oily consistency similar to light hydraulic fluid. It seeps near the front bumper, power steering pump, or steering rack.
  • Differential and Transfer Case Gear Oil: Gear oil is dark brown or black with a heavy, thick viscosity and a sharp, distinctive sulfur or rotten-egg odor. Leaks gather under the center transfer case or rear axle housing.
  • Windshield Washer Fluid: Washer fluid appears bright blue, green, or orange with a watery consistency and a mild alcohol or window-cleaner scent. Leaks show up directly beneath the washer reservoir or front bumper assembly.

Reviewing current maintenance information allows you to stay ahead of routine fluid flushes, gasket replacements, and filter changes before minor seeps become major repairs.

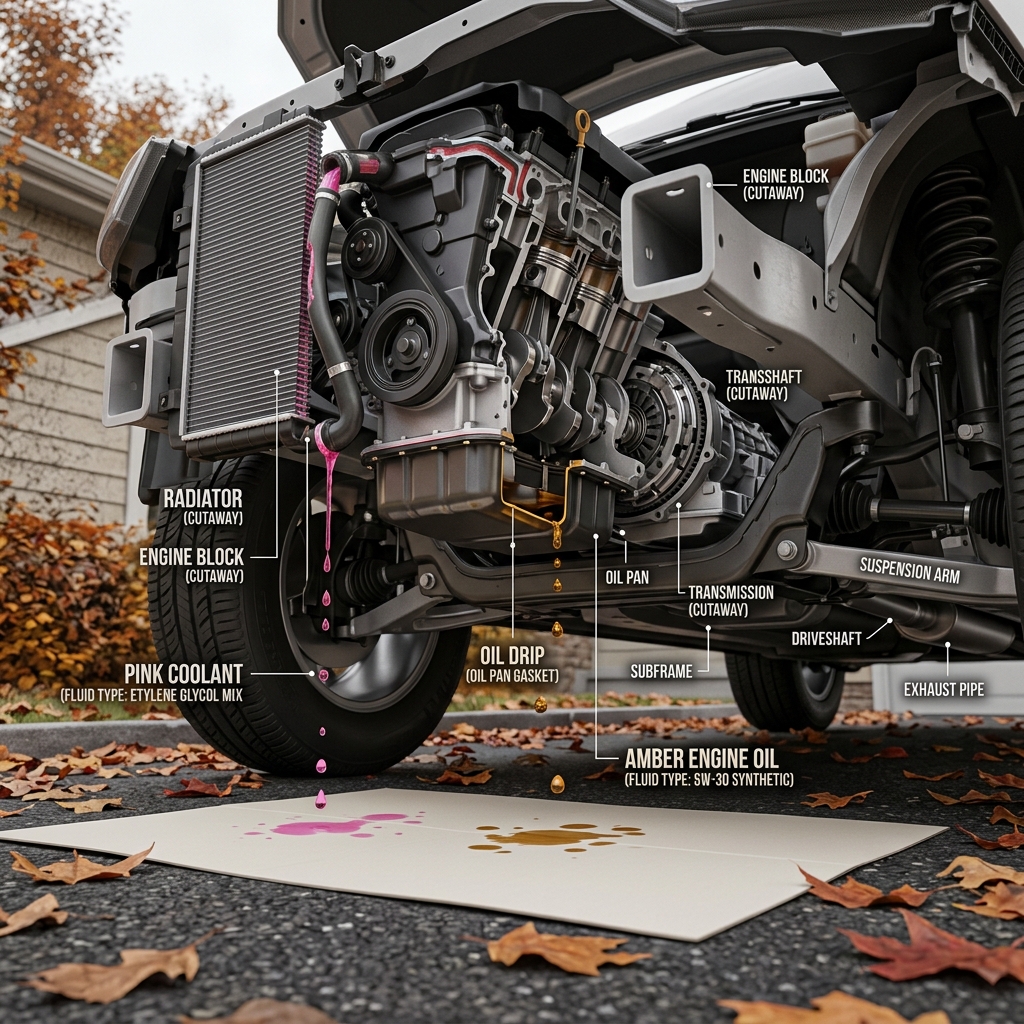

Detailed cutaway diagram of a car engine demonstrating pink coolant and amber engine oil leaks onto cardboard. (Representative image for illustration purposes only. Actual vehicle may vary based on trim and configuration.)

Where Do the Most Common Vehicle Fluid Leaks Originate Under a Car?

The most common vehicle fluid leaks originate beneath the engine oil pan, valve cover gaskets, radiator hose fittings, transmission oil pan, and wheel hydraulic components where heat and vibration degrade rubber seals over time.

Understanding where fluid lines and component housings meet helps isolate seeps before they turn into costly mechanical breakdowns. The engine bay contains numerous gaskets and pressurized seals. Upper leaks often stem from a worn valve cover gasket, causing oil to seep down the side of the engine block. Lower engine leaks usually originate at the oil pan gasket, oil drain plug washer, or front and rear crankshaft seals.

Cooling system leaks frequently start at upper and lower radiator hoses, water pump shaft seals, thermostat housings, or plastic radiator end tanks. Transmission fluid leaks generally come from the transmission pan gasket, cooler line quick-connect fittings, or output shaft seals where drive axles enter the transaxle assembly.

One notable exception to vehicle leaks is clear water dripping beneath the front passenger side dash area. Commuters who bring their vehicles in after noticing puddles often ask whether clear water dripping on the passenger side requires immediate repair, but our service technicians quickly confirm when it is simply normal HVAC condensation. When you run your air conditioning or windshield defroster, the system extracts moisture from cabin air and drains clean water safely through a rubber tube onto the ground.

If you are exploring custom equipment or planning routine maintenance additions, browsing custom vehicle configuration options provides insight into factory-installed heavy-duty cooling packages and protective skid plates.

What Symptoms Indicate a Power Steering Fluid Leak?

A power steering fluid leak is primarily indicated by a loud whining or groaning noise when turning the steering wheel, noticeably stiffer steering at low speeds, and clear to reddish oily spots dripping beneath the front axle area.

Hydraulic power steering systems rely on pressurized fluid to assist steering movement. When a hose, reservoir seal, or steering rack boot begins to seep, fluid pressure drops and allows air into the system. This aeration causes the power steering pump to produce a high-pitched whining noise that grows louder when you turn the wheel toward full lock during parking maneuvers.

Other noticeable symptoms of a power steering leak include:

  • Jerky or uneven resistance in the steering wheel while navigating turns.
  • Slow or sluggish return of the steering wheel to the center position after completing a curve.
  • Wet, oily residue accumulating along hydraulic high-pressure hoses or power steering pump fittings.
  • Low fluid levels inside the clear power steering reservoir under the hood.

Ignoring low power steering fluid can cause the hydraulic pump to run dry, resulting in metal-on-metal friction that destroys the internal pump vanes. Promptly inspecting the fluid level and repairing damaged lines preserves steering responsiveness and prevents complete pump failure.

Can a Fluid Leak Cause a Vehicle Fire?

Yes, a fluid leak can cause a vehicle fire when flammable liquids like engine oil, transmission fluid, power steering fluid, or fuel drip onto extremely hot engine parts like exhaust manifolds or catalytic converters.

Exhaust system components operate at extreme temperatures that frequently exceed 600°F and can reach over 1,000°F under heavy load or towing conditions. Petroleum-based lubricants and hydraulic fluids have auto-ignition temperatures within this operating range. When a pressurized power steering hose or leaking valve cover gasket sprays oil directly onto hot exhaust headers, the fluid can vaporize and instantly ignite into an engine bay fire.

Crucial warning signs that require immediate action include:

  • A strong, acrid smell of burning oil or fuel inside the passenger cabin.
  • Wisps of white or blue smoke rising from beneath the hood or undercarriage while idling or stopped in traffic.
  • An illuminated red brake warning light or specific display messages like BRAKE FLUID LEVEL LOW on the instrument cluster.
  • Rapidly dropping fluid gauges or warning lights indicating loss of engine oil pressure.

If you observe smoke or smell burning fluid while driving, safely pull off the road, turn off the ignition immediately to cut electrical power and fluid pressure, and move away from the vehicle. Exploring service and parts information helps you keep vital seals, fuel lines, and brake system components in optimal working condition.

How Much Does It Cost to Fix an Engine Oil Leak?

Fixing an engine oil leak typically costs between $50 and $150 for simple repairs like an oil filter or drain plug seal replacement, $200 to $600 for a valve cover gasket or oil pan gasket, and $1,200 or more for intensive repairs such as a rear main seal.

The total repair cost depends primarily on labor time rather than parts cost. While replacement rubber gaskets or silicone seals are relatively inexpensive, accessing those seals often requires removing steering linkages, subframes, or engine covers:

  • Drain Plug Washer or Oil Filter Seal: $50 to $150. Corrected easily during a routine oil and filter change.
  • Valve Cover Gasket Replacement: $200 to $450. Requires removing upper intake components and spark plug coils to replace the rubber perimeter seal.
  • Oil Pan Gasket Replacement: $300 to $650. May require lowering the front subframe or crossmember to drop the oil pan.
  • Timing Cover Gasket Replacement: $500 to $900. Demands removing drive belts, pulleys, and front engine covers.
  • Rear Main Seal Replacement: $1,200 to $1,800+. Requires separating the transmission from the engine block to reach the seal behind the flywheel or flexplate.

Commuters traveling along Market Street in Boardman benefit from addressing minor engine oil seeps early during routinely scheduled oil changes, preventing engine bay smoke during heavy stop-and-go driving. Catching small oil seeps during routine multi-point inspections prevents severe oil loss that can cause internal engine damage. You can easily schedule a service appointment online to have certified technicians inspect your vehicle's engine seals.

Common Questions About Vehicle Fluid Leaks and Repairs

Q: How can you tell the difference between fresh engine oil and transmission fluid?

Fresh engine oil features a translucent amber or golden appearance with a petroleum scent and a slick feel. Automatic transmission fluid displays a bright red or pink color with a smoother, lighter consistency. While aged engine oil turns dark brown or black, old transmission fluid darkens to maroon or dark reddish-brown, making them easy to differentiate when wiped onto a clean white paper towel.

Q: Is it safe to drive with a minor power steering fluid leak?

Driving short distances with a minor power steering leak is possible if fluid levels remain adequate, but running the system dry risks severe pump damage and sudden heavy steering resistance. As hydraulic fluid drops below the minimum reservoir mark, air enters the lines and accelerates pump wear. Checking the reservoir level before driving and addressing the leak promptly prevents complete steering system failure.

Q: What should you do immediately if you suspect a flammable fluid leak under the hood?

Safely pull off the roadway, turn off the ignition immediately to stop fluid pressure, and evacuate all passengers away from the vehicle. Avoid opening the hood if smoke or flames are visible, as introducing fresh oxygen can accelerate an engine bay fire. Contact emergency services or Ford Roadside Assistance at 1-800-241-3673 for towing support backed by factory warranty coverage and authorized service center care.

Q: Why does an engine coolant leak leave a powdery residue when it dries?

Engine coolant contains chemical anti-corrosion additives and organic compounds dissolved in water. When leaking coolant contacts warm engine components, the water content evaporates quickly, leaving behind a crusty white or colored mineral powder around hose clamps, water pump housings, or radiator seams. Spotting this residue helps technicians pinpoint slow cooling system leaks before engine overheating occurs.

Q: How long does a certified technician take to diagnose a fluid leak?

Most certified technicians complete a comprehensive fluid leak diagnosis within one hour using ultraviolet dye, pressure testing, and multi-point visual checks. Diagnostic dye is added to the suspected fluid system, the engine is run briefly, and an ultraviolet lamp reveals the precise origin of the seep behind heat shields or engine covers.

Maintaining your vehicle's seals, hoses, and fluid levels protects mechanical performance and ensures family safety on every trip. Whether you need an engine oil leak diagnosed, a cooling system pressure test, or routine fluid maintenance, our factory-trained technicians use genuine OEM parts engineered specifically for your vehicle. Visit our dealership location, order genuine Ford parts for home maintenance, or give our service team a call to keep your car running safely and dependably.
