What Does a Check Engine Light Code Actually Mean for Your Vehicle?

Preparing a Super Duty diesel for cold weather requires testing both dual Group 65 batteries with a digital conductance load tester, verifying glow plug circuit resistance, checking coolant freeze protection, and testing the engine block heater element. Maintaining strong resting battery voltage above 12 volts and ensuring high glow plug current draw prevents severe cold-weather cranking failures when ambient temperatures drop below freezing. To keep a 2026 Ford Super Duty F-250, 2026 Ford Super Duty F-350, or 2026 Ford Super Duty F-450 starting smoothly through freezing conditions, systematic service is essential before the first severe drop in temperature. Ford’s 6.7L Power Stroke V8 turbo diesel relies on rapid cylinder pre-heating and fast starter motor rotation to compress cold air enough to ignite diesel fuel. A comprehensive winter preparation routine addresses every component in the cold-starting system: Dual Battery Conductance Load Testing: Test both 12-volt batteries individually after disconnecting the parallel cable to identify isolated cell degradation before sub-zero mornings arrive. Glow Plug and Control Module Diagnostics: Check for active or pending diagnostic codes and measure electrical resistance across all glow plug heating elements. Engine Oil Viscosity Adjustment: Switch to an approved API CK-4 5W-40 full synthetic diesel engine oil to reduce internal drag during freezing cranking procedures. Coolant Freeze Protection Verification: Test engine coolant concentration using a refractometer to ensure protection down to at least -35°F. Block Heater System Inspection: Inspect the heating element resistance and inspect the power cord for cracking, corrosion, or physical damage. Truck owners managing heavy loads around Calcutta know how taxing morning starts on State Route 170 can be when frost coats the windshield. A weak electrical system struggles significantly as oil thickens in cold weather. Cleaning corrosion from terminal posts, applying protective dielectric grease, and verifying alternator output under full glow plug load ensures reliable starts all winter long. If you want our certified technicians to evaluate your truck before snow arrives, find our East Liverpool service facility or give our service desk a quick call to set up an inspection. Table of Contents What Are the Primary Symptoms of Failing Glow Plugs Versus a Weak Battery? What Battery Specs, CCA Ratings, and AGM Options Does a Powerstroke Need? How Do You Test Glow Plugs with a Multimeter and How Long Should They Pre-Heat? At What Temperature Should You Plug In a Super Duty Block Heater? Common Questions About Pre-Winter Super Duty Diesel Inspections Schedule Your Pre-Winter Super Duty Service W hat Are the Primary Symptoms of Failing Glow Plugs Versus a Weak Battery? Failing glow plugs cause extended engine cranking accompanied by unburned white exhaust smoke and specific diagnostic trouble codes while starter motor speed remains normal, whereas a weak battery results in noticeably slow engine turnover, rapid solenoid clicking, or instrument cluster gauge resets. Distinguishing between a glow plug issue and a battery fault saves diagnostic time and prevents unnecessary component replacement. On modern 6.7L Power Stroke engines, the glow plug system pre-heats the combustion chambers, while the dual batteries deliver electrical energy to spin the starter and energize high-pressure fuel injectors. When one system degrades, the engine exhibits distinctly different symptoms: Failing Glow Plug Indicators: The starter motor cranks the engine at a normal, vigorous speed, but the engine hesitates to catch. Raw, unburned diesel fuel passes into the exhaust system, creating dense white smoke upon startup. The engine may idle roughly for 10 to 30 seconds after firing up. Fault codes such as P0670 (glow plug control module circuit) or P0671–P0678 (individual cylinder glow plug circuits) typically illuminate the check engine light. Warm starts later in the day usually remain completely normal. Weak Battery Indicators: The engine turns over sluggishly, sounding strained or slow. You may hear rapid clicking noises from the starter relay under the hood. During cranking, the heavy electrical draw causes interior lights to dim significantly and instrument cluster needles to sweep completely across the dials upon reset. If battery voltage drops below 10.5 volts while cranking, the powertrain control module cannot properly energize the fuel injectors, resulting in a continuous crank-no-start condition. Truck owners bringing their diesel trucks into our service bay before winter usually ask whether to replace both batteries at once when only one fails. Because the dual batteries operate in parallel, an old battery will constantly pull down a new one, making dual replacement the safest practice. If your truck shows signs of slow cranking or check engine lights, review our routine battery service advice or order OEM replacement parts directly from our dealership. What Battery Specs, CCA Ratings, and AGM Options Does a Powerstroke Need? A 6.7L Power Stroke diesel requires two matched Group 65 12-volt batteries connected in parallel, delivering a minimum rating of 750 CCA each, though ratings between 800 CCA and 850 CCA per battery are ideal for heavy winter use. Cold Cranking Amps ( CCA) measure a battery's capacity to deliver peak electrical current at 0°F for 30 seconds while maintaining terminal voltage above 7.2 volts. This rating differs from standard Cranking Amps (CA), which is measured at a milder 32°F and overstates low-temperature performance. Diesel engines require exceptionally high CCA ratings because cold engine oil creates massive mechanical drag against the pistons, while the glow plug system simultaneously draws high amperage from the circuit before the starter even engages. Selecting between standard flooded lead-acid and Absorbed Glass Mat ( AGM) batteries comes down to durability and recharge efficiency: Flooded Lead-Acid Batteries: Standard factory-spec option providing reliable starting power at an economical price point. They require clean terminals and periodic case cleaning to prevent self-discharge across surface debris. AGM Batteries: Superior choice for cold winter conditions. AGM technology immobilizes electrolyte fluid inside fiberglass mat separators. This design delivers higher cold cranking power, recharges faster under high alternator output, resists severe diesel engine vibration, and handles deep discharge cycles without permanent plate damage. Replacing dual batteries as a matched pair ensures balanced internal resistance. Mixing an aged battery with a fresh one causes the newer unit to discharge into the weaker unit while parked, leading to premature failure of both batteries during extreme cold spells. How Do You Test Glow Plugs with a Multimeter and How Long Should They Pre-Heat? Test a diesel glow plug by disconnecting its electrical harness, setting a digital multimeter to measure resistance in Ohms, and touching one lead to the top terminal tip while grounding the other lead to the engine block—a functional plug measures between 0.5 Ohms and 2.0 Ohms. Testing glow plugs without removing them from the cylinder head is a straightforward process that pinpoints dead heating elements quickly: Turn off the ignition and allow the engine bay to cool down completely. Locate the glow plug wiring harness along the valve cover area and carefully disconnect the individual connector from the target glow plug. Set your digital multimeter to the lowest Ohms scale (resistance setting). Place the red positive probe on the threaded top terminal of the glow plug. Place the black negative probe on a clean, unpainted metal surface on the cylinder head or engine block to ensure a solid ground. Evaluate the reading: a healthy glow plug displays between 0.5 Ohms and 2.0 Ohms. A reading of infinite resistance indicates an internal open circuit, while a reading near 0 Ohms indicates a shorted plug. Both defective conditions require replacement. Pre-heating time depends directly on ambient temperatures. When you switch the ignition key to the ON position, the glow plug control module energizes the plugs and illuminates the wait-to-start coil light on the dash. In freezing weather, allow this light to remain illuminated for the full 3 to 15 seconds until it turns off automatically. On modern 2026 Ford Super Duty models, glow plugs can continue operating in a post-heating phase for up to two minutes after the engine starts to stabilize combustion and reduce cold idling emissions. Allow the engine to idle for roughly 15 seconds immediately after firing up to build proper engine oil pressure before putting the truck in gear. Heavy hauling along riverfront bluffs in East Liverpool places high demand on cold engine components, making proper pre-heating vital to longevity. Drivers looking to upgrade to a newer diesel tow rig can schedule a test drive in a heavy-duty truck to experience modern quick-heating glow plug systems firsthand. At What Temperature Should You Plug In a Super Duty Block Heater? Ford recommends connecting the engine block heater on 6.7L Power Stroke Super Duty diesels when ambient outdoor temperatures fall to 15°F or lower, and usage becomes mandatory at -9°F to ensure engine protection and starting capability. An engine block heater uses an electric heating element submerged in the engine coolant jacket to warm the block and motor oil. Heating the engine core reduces fluid viscosity, eases internal starter resistance, and helps the cylinders reach compression ignition temperature almost immediately. Timer Efficiency: You do not need to leave the block heater plugged in all night. Connecting the cord to an outdoor grounded timer set to turn on 2 to 3 hours before your scheduled morning commute warms the engine block completely while saving electricity. Cord Routing Safety: Ford owner manual guidelines explicitly state you must never fully close or drop the hood under its own weight when the block heater power cord is routed out of the engine bay. Pinching the cord can damage internal wiring insulation or interfere with the hood latch mechanism. Pre-Winter Inspection: Check the heater cord for frayed insulation, bent plug prongs, or road salt corrosion. Measure electrical continuity across the plug terminals using a multimeter to confirm the internal heating element has not burnt out. Common Questions About Pre-Winter Super Duty Diesel Inspections Q: Why does a diesel Super Duty require two batteries instead of one? Ford Super Duty diesel trucks require two heavy-duty 12-volt batteries wired in parallel to provide the high surge amperage needed during cold starts. Spinning a high-compression diesel engine demands substantial starter torque, while the glow plug system draws heavy current simultaneously. Dual batteries double the available cold cranking amps while maintaining the vehicle's 12-volt electrical system architecture. Q: What causes white smoke coming from the exhaust on a cold winter morning? White exhaust smoke immediately after a cold diesel start usually indicates unburned diesel fuel vapor exiting the tailpipe. When one or more glow plugs fail, the affected cylinder lacks the heat necessary to ignite injected fuel during initial cranking. Once the engine warms up from compression heat, the white smoke typically clears, but replacing the failed glow plug resolves the root cause. Q: Can a single bad glow plug cause a Power Stroke engine not to start? A single defective glow plug rarely prevents a 6.7L Power Stroke engine from starting entirely, but it causes rough idling, cylinder misfires, and noticeable white smoke upon startup. However, if multiple glow plugs or the central glow plug control module fail, the engine may experience extended cranking times or a total no-start condition in freezing ambient temperatures. Q: Is it necessary to switch engine oil viscosity before winter in a diesel truck? Switching to an approved API CK-4 5W-40 full synthetic diesel engine oil before winter improves cold-weather cranking performance substantially. Full synthetic 5W-40 flows much faster at low temperatures than conventional 15W-40 oil, reducing starter load during cold activation and ensuring rapid oil pressure delivery to critical turbocharger bearings and valve gear. Q: How long can you leave an engine block heater plugged in continuously? Leaving an engine block heater plugged in continuously will not melt internal engine components because coolant transfers heat away, but running it non-stop wastes electricity. The engine reaches its maximum temperature rise after 2 to 3 hours of operation. Using a heavy-duty outdoor timer to energize the block heater several hours before morning startup provides maximum warm-up benefits efficiently. To ensure your diesel truck receives a complete cold-weather system checkup, you can easily schedule a service appointment online with our certified technicians. Schedule Your Pre-Winter Super Duty Service A thorough pre-winter diesel inspection protects your truck against unexpected winter starting failures, battery strain, and glow plug faults. Checking dual battery conductance, glow plug circuit resistance, coolant freeze thresholds, and block heater operation before freezing weather sets in ensures your vehicle starts reliably every morning. Our service center provides expert diagnostic care tailored specifically to 6.7L Power Stroke diesel engines. Our factory-trained technicians utilize advanced diagnostic equipment, genuine OEM components, and thorough multi-point inspection procedures to keep your heavy-duty truck operating at peak performance. Visit our service center at 1503 Pennsylvania Ave, East Liverpool, OH 43920 for comprehensive winter maintenance. Speak directly with our service advisors by giving us a quick call to discuss battery testing or glow plug replacement. Take advantage of our convenient mobile service options to have routine maintenance performed directly at your home or work site. Reach out to our team today to prepare your Super Duty diesel for reliable winter performance. © 2026 Tri State Ford. All rights reserved. Super Duty Diesel Winter Prep in East Liverpool OH | Tri State Ford

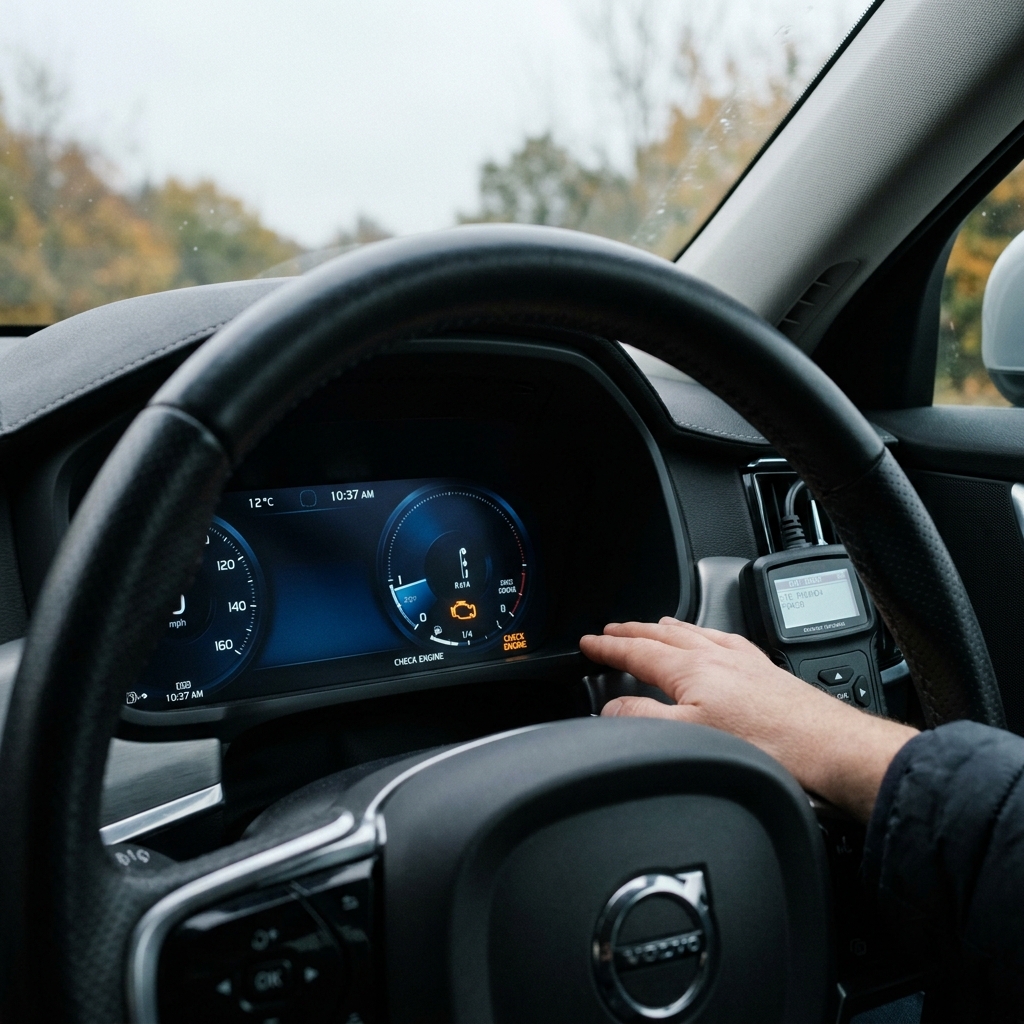

A check engine light turns on when your vehicle's onboard computer detects an operational error in the engine, transmission, or emissions control system. The engine control module continuously reads data from sensors throughout the powertrain, and when sensor values fall outside preset factory thresholds, the system stores a diagnostic code and illuminates the amber dashboard light to warn you before component damage occurs. Modern Ford vehicles rely on a sophisticated network of digital sensors to monitor everything from air-fuel ratios to exhaust temperature. When the powertrain control module registers an anomaly—such as an unexpected air leak or an erratic voltage signal—it triggers the service indicator light on your instrument cluster. This warning serves as an early notification system designed to prevent minor sensor malfunctions from turning into severe mechanical breakdowns. Ignoring an active engine light can lead to reduced fuel efficiency, rough idling, higher tailpipe emissions, and potential harm to major exhaust components like the catalytic converter. Driving along the bluffs and river valley roads in East Liverpool places steady demands on your engine, making prompt attention to powertrain warnings essential for vehicle longevity. If your dashboard warning light activates, contacting (330) 462-7578 allows our certified service team to perform a comprehensive system scan, pin down the exact diagnostic trouble code, and explain the necessary corrective steps clearly. Drivers needing immediate in-person assistance can easily stop by our convenient East Liverpool service center for professional inspection. Table of Contents What Are the 10 Most Common Reasons Your Check Engine Light Turns On? What Is the Difference Between a Solid and a Flashing Check Engine Light? Why Does an Engine Misfire Cause the Check Engine Light to Flash? How Do Pending Codes, Stored Codes, and OBD2 Scanners Work? Common Questions About Check Engine Lights and Vehicle Repairs Schedule Certified Ford Diagnostic Care at Tri State Ford What Are the 10 Most Common Reasons Your Check Engine Light Turns On? The ten most common causes for a check engine light illumination are a loose or missing gas cap, a failing oxygen sensor, a damaged catalytic converter, a dirty or faulty mass airflow sensor, worn spark plugs, failing ignition coils, an evaporative emission system leak, a failed EVAP purge valve, a malfunctioning thermostat, or a failing engine coolant temperature sensor. Vehicle owners frequently encounter these mechanical and electrical triggers during routine driving. Understanding how each component functions helps clarify why the onboard computer activates the warning light: Loose, Cracked, or Missing Gas Cap: The evaporative emission system maintains a pressurized seal to prevent fuel vapors from escaping into the atmosphere. A loose cap breaks this seal, triggering an EVAP system leak code such as DTC P0457 or P0440. Failing Oxygen Sensor: Measuring unburned oxygen in the exhaust stream, a degraded O2 sensor sends incorrect data to the engine computer, reducing fuel economy by up to 40 percent and accelerating exhaust wear. Malfunctioning Catalytic Converter: Responsible for converting harmful exhaust gases into harmless emissions, a failing converter restricts exhaust flow, causes severe power loss, and often generates a sulfur odor. Faulty Mass Airflow Sensor: The mass airflow sensor measures incoming air volume to determine proper fuel delivery. Contamination on the sensor element causes hesitation, stalling, and poor acceleration. Worn Spark Plugs: Spark plugs ignite the compressed fuel-air mixture inside each cylinder. As electrode gaps widen over thousands of miles, incomplete combustion leads to rough idling and engine misfires. Failing Ignition Coils: Modern engines utilize individual ignition coils for each cylinder. A failing coil stops supplying high-voltage electricity to its spark plug, triggering immediate misfire codes. Evaporative Emission System Leaks: Damaged EVAP hoses or charcoal canisters prevent the vehicle from purging fuel vapors properly into the engine intake, causing persistent warning lights. Stuck EVAP Purge Valve: Common on turbocharged EcoBoost powertrains, a stuck purge valve allows uncontrolled fuel vapors into the intake manifold, creating rich air-fuel mixtures and rough starts after refueling. Faulty Engine Thermostat: A thermostat stuck open prevents the engine coolant from reaching optimal operating temperature, causing the engine control unit to keep the fuel system in a rich warming-up mode. Failing Coolant Temperature Sensor: An inaccurate coolant sensor sends false temperature readings to the dashboard and engine computer, causing improper fan operation and fuel delivery errors. Navigating daily driving along State Route 170 in Calcutta with a active sensor fault forces your engine to run inefficiently. Models like the Ford Escape powered by the 1.5L engine or the Ford Explorer equipped with the 2.3L powertrain rely on precise sensor synchronization. Addressing these common issues promptly keeps your powertrain running smoothly and protects vital emissions equipment. What Is the Difference Between a Solid and a Flashing Check Engine Light? A solid check engine light indicates a non-emergency powertrain or emissions fault that requires professional diagnosis soon, while a flashing check engine light signals an active, severe engine misfire that allows raw fuel to enter the exhaust stream and destroy the catalytic converter within minutes. When the service indicator glows steady, your vehicle's onboard computer has identified a persistent anomaly—such as a failing sensor or a minor emissions leak—that does not present an immediate threat of catastrophic mechanical destruction. You can generally continue driving gently to complete your immediate trip, but you should schedule a diagnostic evaluation at your earliest convenience to prevent worsening performance. A flashing warning light represents an urgent emergency. When the light blinks repeatedly, one or more engine cylinders are failing to ignite fuel properly. As unburned gasoline passes through the engine exhaust valve into the red-hot exhaust manifold, it ignites inside the catalytic converter internal structure, raising temperatures beyond 1,600 degrees Fahrenheit. Continuing to drive under load with a blinking warning light can melt internal converter components, create severe exhaust restrictions, and lead to engine fire hazards. If your dashboard light begins blinking, pull off the road safely, turn off the engine, and arrange for immediate towing service. Why Does an Engine Misfire Cause the Check Engine Light to Flash? An engine misfire causes the check engine light to flash because unburned fuel leaves the combustion chamber and ignites inside the catalytic converter, generating extreme thermal stress that can permanently melt the converter's internal ceramic core in a matter of minutes. During normal operation, the spark plug ignites the air-fuel mixture inside the cylinder at a precise millisecond during the compression stroke. If a failed ignition coil, fouled spark plug, or clogged fuel injector prevents combustion, that full charge of gasoline gets pushed out of the exhaust valve into the manifold. Because exhaust gas temperatures already exceed one thousand degrees, raw fuel ignites immediately upon contact with the internal catalyst material. The catalytic converter relies on rare precious metals coating a fine ceramic honeycomb to neutralize harmful emissions. Internal fuel fires elevate temperatures far beyond structural tolerances, causing the ceramic substrate to liquefy, collapse, and block the exhaust passage completely. The engine control module continuously tracks crankshaft speed variations using position sensors. When it detects rapid deceleration beats corresponding to a non-firing cylinder, it instantly flashes the check engine light to command the driver to stop the vehicle immediately and prevent thousands of dollars in catalytic converter and engine damage. How Do Pending Codes, Stored Codes, and OBD2 Scanners Work? A pending code is a temporary error recorded when the engine computer detects a fault during a single drive cycle, whereas a stored code is a permanent fault confirmed over multiple drive cycles that actively triggers the dashboard check engine light. The vehicle's onboard diagnostic system uses a multi-tier testing process before illuminating warning lights: Pending Codes: When a sensor reading strays outside normal ranges once, the powertrain control module logs a pending diagnostic trouble code without turning on the dashboard light. If the error does not recur on subsequent drives, the computer clears the pending code automatically. Stored Codes: If the same operational fault recurs across consecutive drive cycles under similar operating conditions, the computer elevates the entry to a stored code and illuminates the check engine light. Stored codes remain in memory until cleared manually or resolved through systematic drive cycle testing. Handheld OBD2 Code Readers: Basic handheld code readers and Bluetooth smartphone adapters cost between $20 and $60. These tools connect to the OBD2 port beneath the steering column to read four-digit diagnostic trouble codes. Diagnostic Limitations: A free store code scan or handheld reader only provides the raw code number; it does not identify the exact failing part. For instance, a lean mixture code could point to a vacuum leak, a weak fuel pump, a clogged filter, or a faulty sensor. Professional diagnostic equipment and physical testing are required to pinpoint the root cause. Automatic Light Reset: If an underlying fault is fully repaired, the computer will turn off the check engine light on its own after 50 to 100 miles of varied city and highway driving across several complete drive cycles. Commercial operators utilizing our new Ford F-Series work trucks rely on precise computer diagnostics to maintain fleet uptime and avoid costly roadside breakdowns. Common Questions About Check Engine Lights and Vehicle Repairs Q: Will a free store code scan tell you the exact part to replace? A free store code scan retrieves only the diagnostic trouble code logged by your car's computer, indicating which system or sensor detected abnormal behavior. It does not pinpoint the precise failing component. For example, a code for an oxygen sensor circuit error might stem from a damaged wiring harness, a blown fuse, or an engine vacuum leak rather than a bad sensor itself. Comprehensive hands-on diagnostic testing by factory-trained technicians is necessary to verify the exact faulty component before installing replacement parts. Q: How many miles does it take for a check engine light to turn off on its own after a repair? After an underlying mechanical or electrical fault is completely repaired, the engine control unit typically requires 50 to 100 miles of varied driving to turn off the check engine light automatically. The computer must complete multiple drive cycles—which include specific periods of engine warm-up, steady highway cruising, and street driving—to run self-diagnostic monitors and verify that all operating parameters have returned to factory specifications. Q: How much does a basic handheld OBD2 code reader cost for home diagnostics? A basic standalone handheld OBD2 code reader or a wireless Bluetooth adapter that syncs with a smartphone application generally costs between $20 and $60. These entry-level diagnostic tools plug directly into the standard 16-pin OBD2 port beneath your vehicle's dashboard. They allow vehicle owners to read stored diagnostic trouble codes, view basic engine parameter data, and clear temporary error codes from the computer memory. Q: Can a loose fuel cap cause a check engine light on a Ford vehicle? A loose, missing, or worn fuel cap is one of the most frequent causes of a check engine light on Ford cars, trucks, and crossovers. The evaporative emission control system pressurizes the fuel tank to trap harmful gasoline vapors. When the gas cap fails to form an airtight seal, the pressure sensor detects a vacuum leak and triggers codes such as DTC P0457 or P0440, turning on the dashboard warning light. Q: Is it safe to drive my vehicle to the dealership with a solid check engine light? Driving short distances with a solid, steady check engine light is generally safe provided the engine displays normal coolant temperatures, steady oil pressure, and smooth performance without unusual noises. A steady light indicates a non-critical issue that requires evaluation soon. However, if the engine hesitates, stalls, or displays a flashing check engine light, you should pull over safely and request roadside assistance immediately to avoid catastrophic internal damage. Schedule Certified Ford Diagnostic Care at Tri State Ford Resolving a check engine light quickly protects your powertrain, preserves your vehicle's resale value, and ensures safe driving for every daily journey. Our factory-certified technicians utilize advanced OEM diagnostic equipment to pinpoint underlying electrical and mechanical issues accurately, using genuine replacement components designed specifically for your vehicle. When a dashboard indicator activates, you can schedule a service appointment online at your convenience or order genuine Ford parts online directly through our service department. If your vehicle requires routine electrical checkups alongside engine code scans, feel free to read our battery maintenance guide to learn how stable voltage keeps onboard computer systems operating reliably. When you need trusted, transparent vehicle care from experienced professionals, visit our facility at 1503 Pennsylvania Ave or give our service desk a call at (330) 462-7578 to keep your Ford running reliably for years to come. © 2026 Tri State Ford. All rights reserved. Vehicle specification data © JATO Dynamics Limited. Check Engine Light Diagnostics in East Liverpool OH | Tri State Ford

A transmission flush is necessary for your Ford vehicle when the fluid becomes contaminated, oxidized, or thermal degradation compromises hydraulic performance. While Ford schedules normal-duty fluid changes at 150,000 miles for modern transmissions like the 10R80, severe operating conditions demand fluid servicing every 30,000 to 60,000 miles. Performing a complete flush exchanges 100% of aged fluid throughout the gear case, lines, and torque converter, protecting internal valve bodies, maintaining precise clutch engagement, and preventing thermal breakdown. Automatic transmission fluid functions as a hydraulic medium, friction modifier, and heat sink simultaneously. Over tens of thousands of miles, thermal cycling and friction debris diminish the fluid's ability to maintain optimal pressure. When fluid breakdown occurs, internal clutch plates experience slippage, shift timing suffers, and internal operating temperatures rise rapidly. Routine fluid maintenance prevents minor varnish buildup from escalating into major mechanical failure, keeping your drivetrain responsive under heavy demands. For drivers who regularly use their trucks for heavy work, following severe duty service guidelines is essential. Severe duty includes frequent towing, carrying heavy cargo loads, commercial extended idling, or driving through steep elevations and extreme ambient temperatures. Local drivers navigating the elevation changes and suburban stop-and-go routes along State Route 170 in Calcutta experience higher transmission thermal stress than typical long-haul highway commuters. Servicing the fluid at recommended severe intervals keeps hydraulic pressures consistent and prevents premature wear on critical internal components. When you notice delayed engagement, harsh shifting between gears, or elevated transmission fluid temperatures on your instrument cluster, schedule an inspection promptly. You can find our East Liverpool facility directions online, or call our service department directly at (330) 462-7578 to speak with a factory-trained service advisor about your vehicle's maintenance needs. Table of Contents Is Doing Multiple Drain and Fills Equivalent to a Full Transmission Flush? What Equipment and Processes Are Involved in a Ford Transmission Flush? How Fresh Fluid Extends the Operating Life of Your Ford Transmission Why a Transmission Flush Costs More Than a Standard Engine Oil Change Why Schedule Your Transmission Service at Tri State Ford in East Liverpool? Frequently Asked Questions About Ford Transmission Flushes Keeping Your Ford Drivetrain Dependable for the Road Ahead Is Doing Multiple Drain and Fills Equivalent to a Full Transmission Flush? Performing multiple drain-and-fill procedures is not equivalent to a professional transmission flush because a standard pan drain removes only 30% to 40% of the total fluid volume. The remaining majority stays trapped inside the torque converter, fluid cooler, and hydraulic control lines. Even if a technician drains and refills the pan three consecutive times, old contaminated fluid remains mixed with the new fluid, achieving only roughly 80% to 85% dilution while consuming significantly more fluid and labor time. When a technician unbolts the transmission pan or removes the drain plug, only the fluid resting inside the oil pan evacuates. Modern Ford transmissions, including modern 6-speed and 10-speed automatic units, hold between 10 and 14 quarts of specialized fluid. A basic pan drop releases roughly 4 to 5 quarts. The contaminated fluid trapped in the torque converter contains suspended clutch material, microscopic metallic particles, and degraded friction additives that immediately mix with and contaminate the newly added fluid. Service Method Fluid Volume Exchanged Torque Converter Cleared? Cooler Lines Evacuated? Labor & Fluid Efficiency Standard Pan Drain 30% - 40% No No Low (Leaves old fluid behind) Triple Drain & Fill 80% - 85% Partial (via dilution) Partial (via dilution) Poor (Requires 15+ quarts & repeated labor) Professional Flush 95% - 100% Yes Yes High (Complete single-step exchange) When truck owners ask our service team whether multiple drain-and-fills do the same job as a full flush, we show them how a standard pan drop leaves several quarts of old fluid trapped inside the torque converter and cooler lines. A professional fluid exchange machine connects directly to the transmission cooling loop. As the vehicle's internal pump runs, the equipment uses fluid pressure to displace degraded fluid while simultaneously injecting clean, factory-specified fluid at the exact same rate. This process fully purges the system without leaving dirty fluid behind. Attempting to achieve fluid cleanliness through repeated pan drains increases long-term maintenance costs without delivering complete system restoration. Purchasing multiple short-interval fluid fills requires extra shop time and extra containers of specialized fluid. Using our online portal to order genuine Motorcraft parts ensures you get the exact filters, gaskets, and fluids engineered specifically for your Ford's transmission model. What Equipment and Processes Are Involved in a Ford Transmission Flush? A Ford transmission flush utilizes specialized inline fluid exchange equipment that connects directly to the vehicle's transmission cooling circuit to cycle out dirty fluid while introducing fresh fluid under controlled pressure. The process involves preliminary diagnostic testing, fluid temperature verification, inline fluid exchange, pan filter service when applicable, and accurate fluid level verification using Ford factory diagnostic protocols. The procedure begins with a preliminary inspection and road test to verify current transmission operation and scan for stored diagnostic trouble codes. Technicians bring the transmission up to operating temperature, as accurate fluid exchange and level setting depend on specific thermal parameters. The fluid exchange machine attaches to the cooler inlet and outlet lines. By operating in series with the transmission's internal oil pump, the exchange machine safely transfers clean fluid into the system while capturing old, oxidized fluid without over-pressurizing delicate internal seals or solenoids. Technicians attach inline quick-connect adapters to the transmission fluid cooler lines. The fluid exchange machine monitors system flow and matches incoming clean fluid to outgoing waste fluid. Fresh Motorcraft MERCON ULV fluid replaces contaminated fluid throughout the gear set, torque converter, and cooling lines. The technician accesses the transmission pan to clean internal magnets and install a fresh filter when required by vehicle architecture. The system undergoes thermal level verification using Ford diagnostic tools to guarantee exact fluid volume. Proper equipment operation ensures that sensitive electronic shift solenoids and complex valve bodies remain free from debris during service. On high-mileage vehicles where maintenance has been deferred, factory-trained technicians inspect fluid condition prior to service to confirm that a complete exchange is appropriate for the transmission's mechanical state. To simplify your service visit, Tri State Ford provides flexible scheduling options designed around your busy day. Customers can take advantage of our convenient pickup and delivery service options to have their vehicle serviced and returned without taking time away from work or family commitments. How Fresh Fluid Extends the Operating Life of Your Ford Transmission Fresh transmission fluid extends operating life by maintaining exact hydraulic pressure, reducing thermal friction, preventing internal varnish accumulation, and protecting delicate clutch friction materials. Clean fluid contains active chemical additives that suppress foaming, prevent corrosion on internal copper and steel alloys, and keep rubber seals pliable to prevent internal pressure losses. Over time, high operating temperatures cause transmission fluid to oxidize, turning from a bright translucent pink or red to dark brown or black. Oxidized fluid loses its shear stability, meaning it thins out under extreme pressure and high temperatures. Thin, degraded fluid allows metal-to-metal contact on planetary gear sets and bearings, accelerating mechanical wear. Fresh synthetic fluid maintains its viscosity under extreme loads, ensuring a protective hydrodynamic film remains between sliding metal components. Commuters navigating daily stop-and-go traffic around Market Street in Boardman subject their transmissions to continuous thermal cycling and frequent gear shifts. This type of driving breaks down friction modifiers faster than steady highway cruising. Fresh fluid restores precise clutch plate friction properties, preventing subtle slippage that generates localized heat spikes. Lower internal operating temperatures directly correlate with extended component longevity for valve bodies, torque converter clutches, and internal seals. Regular fluid exchanges yield substantial long-term economic benefits by protecting your vehicle against major powertrain repairs. Investing in preventative fluid maintenance at recommended intervals costs a fraction of a full transmission overhaul or replacement, maintaining your vehicle's resale value and driving dependability for years to come. Why a Transmission Flush Costs More Than a Standard Engine Oil Change A transmission flush costs more than a standard engine oil change because it requires significantly higher fluid capacity, specialized full-synthetic fluid formulations, dedicated fluid exchange machinery, and specialized technician labor time. While a routine engine oil change typically replaces 5 to 6 quarts of oil, a complete transmission fluid flush utilizes 10 to 14 quarts of specialized fluid along with complex inline hookup procedures. The high cost of transmission service stems directly from fluid chemistry, material volume, and labor complexity: Fluid Volume: Transmissions require double or triple the fluid volume of a standard engine oil sump to fill the pan, torque converter, valve body, and cooler circuit. Fluid Specification: Advanced formulations like Motorcraft MERCON ULV utilize precise synthetic base stocks and friction modifiers engineered specifically for high-gear-count automatics. Equipment & Labor: Technicians must connect specialized exchange machinery, monitor live diagnostic temperature data, and perform specialized fluid level verification procedures. <strong>FLUID SERVICE COMPARISON BREAKDOWN</strong> | ENGINE OIL CHANGE | TRANSMISSION FLUSH SERVICE | | --- | --- | | • 5 to 6 Quarts Capacity | • 10 to 14 Quarts Capacity | | • Gravity Drain Pan Sump | • Inline Machine Fluid Exchange | | • Standard Filter Replacement | • Specialized OEM Synthetic Fluid | | • Simple Dipstick Level Check | • Thermal Diagnostic Level Check | Accurately checking and setting the fluid level on modern Ford transmissions requires factory diagnostic software. Many late-model transmissions do not feature a traditional under-hood dipstick; instead, technicians must monitor transmission fluid temperature via diagnostic tools and check fluid standpipes underneath the vehicle at specific thermal thresholds. Investing in correct service procedures protects your drivetrain from costly damage caused by improper fluid levels or non-compliant universal fluids. You can easily schedule a maintenance appointment online with our certified service team to ensure your transmission receives precise, factory-aligned care. Why Schedule Your Transmission Service at Tri State Ford in East Liverpool? Scheduling your transmission flush at Tri State Ford guarantees that your vehicle is serviced by factory-certified technicians using genuine Motorcraft fluids and specialized Ford exchange equipment. Independent repair shops frequently utilize universal multi-vehicle fluids that fail to match the precise viscosity and friction coefficient requirements of modern Ford transmissions like the 10R80 or 6R80. Our service department follows strict Ford technical service bulletins and engineering guidelines during every fluid exchange. Using non-spec fluid can lead to harsh gear engagement, torque converter shudder, accelerated clutch wear, and potential warranty complications. Our team utilizes genuine Motorcraft MERCON ULV fluid formulated specifically for your vehicle's exact transmission architecture, protecting your factory warranty and maintaining shift quality. Beyond transmission maintenance, our technicians perform comprehensive multi-point inspections during your visit to identify potential issues before they cause road trouble. From checking brake pad thickness to conducting routine battery and electrical system checks, we ensure your entire vehicle remains dependable. We know your time is valuable, which is why we offer flexible maintenance options tailored to your schedule. For routine upkeep and minor services, ask our service team about our mobile service capabilities, bringing certified Ford care directly to your driveway or workplace. Frequently Asked Questions About Ford Transmission Flushes Q: Does a transmission flush clean or replace the filter in a Ford vehicle? Did you know that some Ford transmissions have easily accessible filters, while others require more involved procedures for replacement? On models with a removable pan, technicians drop the pan, clean internal collection magnets, and replace the filter element alongside the fluid exchange service. On sealed units or designs where the filter is internal, fluid exchange purges suspended debris from the system. Q: Can a transmission flush cause shifting issues on high-mileage Ford vehicles? A transmission flush will not damage a healthy transmission, but on extremely high-mileage vehicles that have never received fluid maintenance, a pressurized flush can dislodge heavy sludge deposits into sensitive valve body passages. In cases where fluid is severely burnt or heavy friction debris is present in the pan, factory technicians may recommend a traditional pan drain and filter change rather than a high-pressure flush. Q: How long does a professional transmission flush take at the dealership? A professional transmission flush service typically takes between 1 and 2 hours at our dealership. This timeframe accounts for initial vehicle diagnostics, bringing the transmission up to operating thermal thresholds, connecting inline exchange machinery, performing the full fluid exchange, servicing the pan filter when applicable, and executing final diagnostic fluid level checks. Q: Do independent mechanics use genuine Motorcraft fluid for Ford flushes? Independent mechanics frequently use universal multi-vehicle transmission fluids supplied in bulk to cover multiple vehicle makes. While these fluids claim broad compatibility, modern Ford transmissions require exact fluid specifications such as Motorcraft MERCON ULV. Using non-OEM universal fluid can cause shift hesitation, internal shudder, and premature wear on clutch packs. Q: How do I know if my Ford transmission fluid needs to be replaced? Common indicators that your transmission fluid requires replacement include dark or burnt-smelling fluid, delayed gear engagement, harsh or clunky shifting, shuddering during acceleration, or elevated transmission temperatures on your dashboard display. Following your owner's manual maintenance schedule or servicing fluid every 30,000 to 60,000 miles for severe duty prevents these degradation symptoms. Keeping Your Ford Drivetrain Dependable for the Road Ahead Maintaining clean transmission fluid is one of the most effective steps you can take to protect your vehicle's longevity, fuel efficiency, and driving performance. Whether you use your truck for daily family transportation, heavy trailer towing, or job site hauling, routine fluid maintenance prevents internal heat damage and keeps your automatic transmission shifting smoothly. When you bring your vehicle to Tri State Ford, our factory-trained service technicians ensure every step of your transmission flush is completed to strict Ford engineering standards. From precise thermal level checks to genuine Motorcraft synthetic fluids, we provide transparent, high-quality care that keeps your vehicle performing at its best. Take the next step in protecting your drivetrain today. View our dealership map page for easy directions to our service center, or give our service advisors a call at (330) 462-7578 to reserve your maintenance appointment. © 2026 Tri State Ford. All rights reserved. Transmission Flush Services in East Liverpool OH | Tri State Ford
